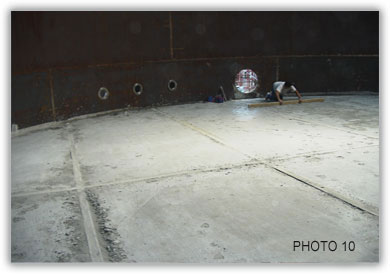

PHOTO 10. The end of the work and finish of the interior of one of the tanks in a fruit juice factory. The tanks are made of steel, each with a capacity of 4.000 m3 and there are 6 of them in the interior of refrigerated premises set at 5o C. The only location where there is athermal bridge is at the bottom, in the foundations. To insulate it, a thermal insulation of CC 250 is pumped in an area 1 metre thick. Once finished and dry, it receives a welded and hermetically sealed steel covering throughout the whole of the tank perimeter.

PHOTO 11. The process is performed at high performance: 25 m3 /h, so the bags of cement are piled close to the mixer to supply it easily and quickly.

PHOTO 12. An outer view of the tanks in construction before being covered in the refrigerated area.

The D.G.F. naming of technical C.C.: CC followed by a number that indicates the amount of cement. Example: CC 250 (250 Kg of cement per m3)
